SL Nano AF
Select Configuration:
The new SL Nano AF combines high light output with a compact design: up to 1,300 lumens, 150 lux and a range of 250 meters. The elaborately designed biconic TIR lens directs the light of the two ams OSRAM automotive LEDs precisely onto the road, combining wide illumination with long range and a clearly defined cut-off line. The 800-lumen low beam and the 1,300-lumen high beam are StVZO-approved.
New are the reworked housing design, the optimized heat dissipation and the increased efficiency compared with the previous generation: the cooling fins of the CNC-machined aluminum housing now sit much better in the airflow, and at 14 watts the SL Nano AF produces 1,300 instead of 1,200 lumens. The light head weighs 62 grams.

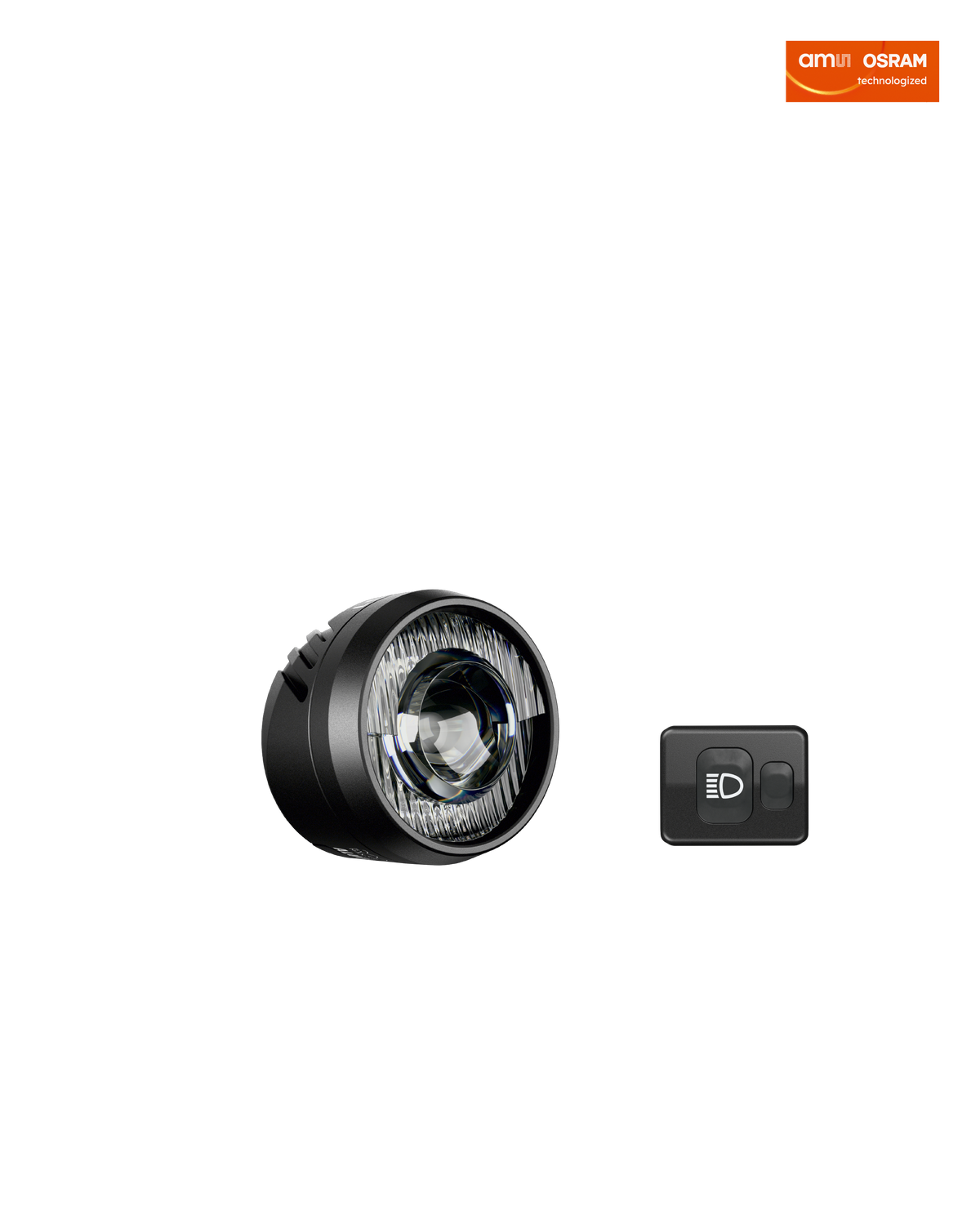

Via Bluetooth 5.2 BLE, the proven handlebar remote controls the daytime running light, low beam and high beam directly from the handlebar. The optional Rotlicht Pro BT can be integrated wirelessly into the system and operated together with the front light via the remote.
Note: This SL Nano AF uses Bluetooth 5.2 and works only with the SL Bluetooth Remote Control 5.2 – not with other Lupine Bluetooth remote controls.
With the 5.0 Ah SmartCore battery, the SL Nano AF runs for 2:30 to 17:30 hours depending on the light mode. Eco mode reduces the light output in a targeted way and extends the burn time. The three-stage optical battery warning, the SmartCore battery indicator and the emergency reserve mode keep the remaining capacity in view.

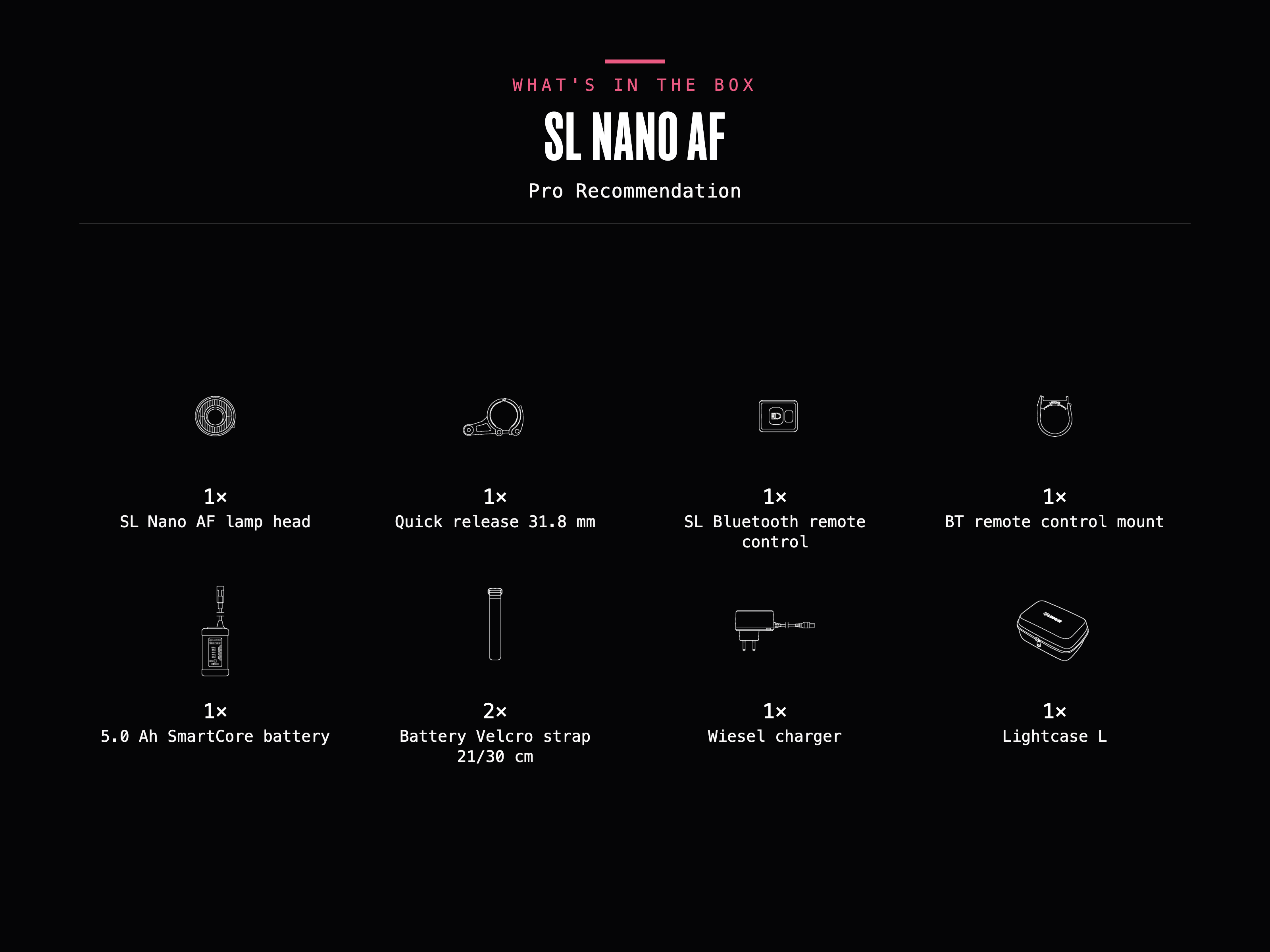

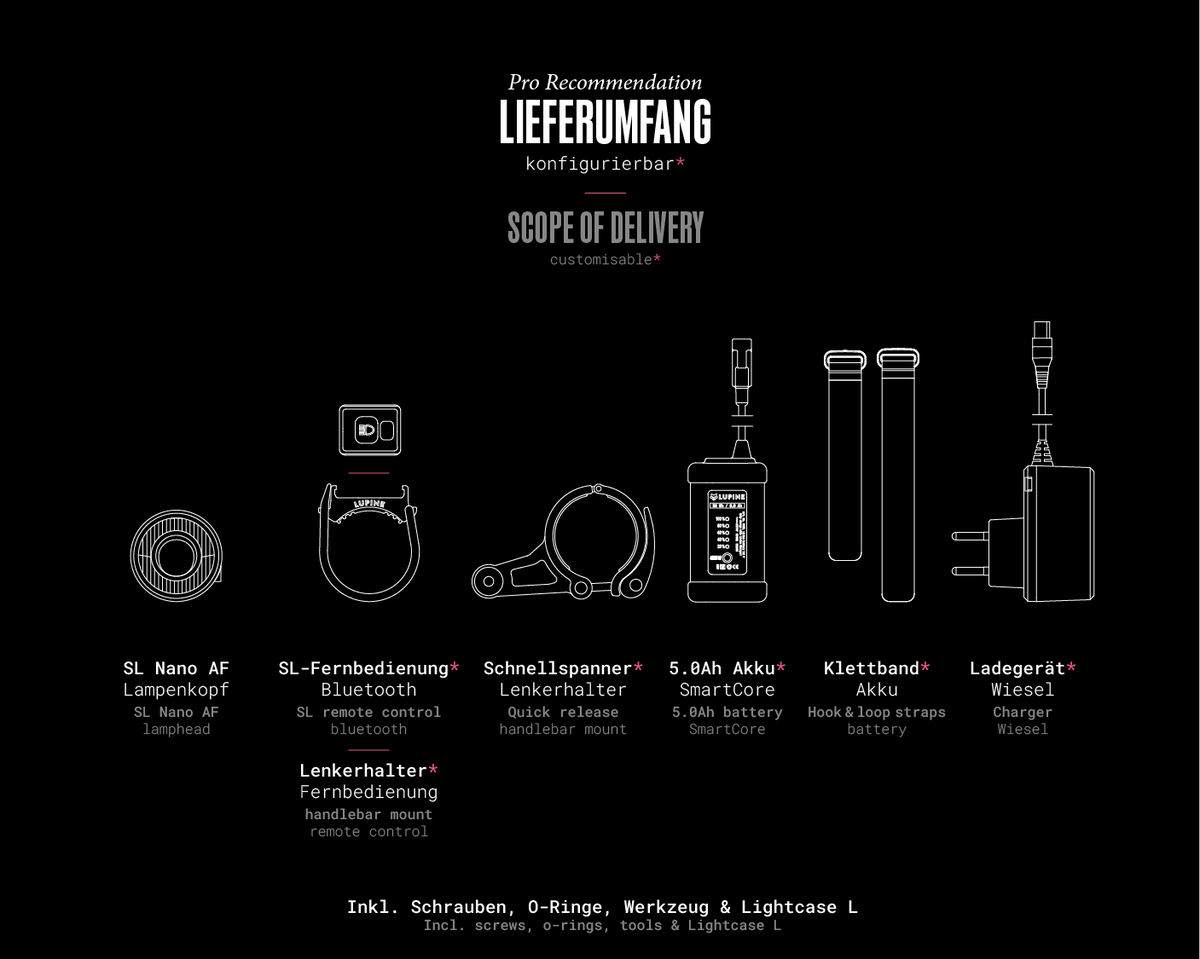

Regardless of the configuration, the light head is always supplied with the Lightcase L.
Goes well with
Small and
outstandingly bright
Proof that size doesn't mean strength – the SL Nano AF is our smallest StVZO-approved front light with an external battery and at the same time one of the brightest in its size class. Tiny in size, uncompromising in performance: weighing just 62 grams with a housing of 30 × 41 × 41 millimeters, the SL Nano AF combines state-of-the-art lighting technology, smart control and first-class craftsmanship in a housing that blends almost invisibly into any bike's design.
Switchable
high beam with 1,300 lumens

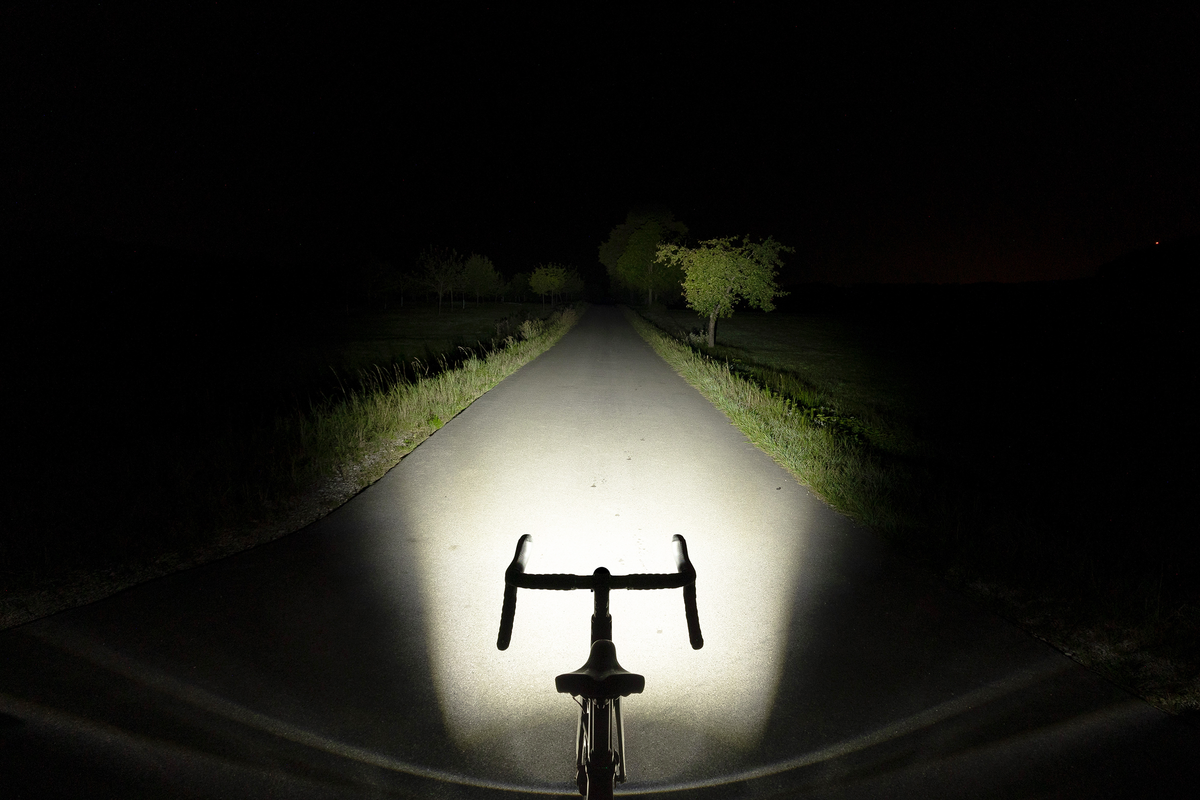

Despite its compact size, the SL Nano AF delivers a powerful 800-lumen low beam that illuminates the road evenly, broadly and glare-free. At the push of a button, the system activates the high beam with up to 1,300 lumens and a range of 250 meters – perfect for dark country roads, fast descents and moments when maximum visibility is required.

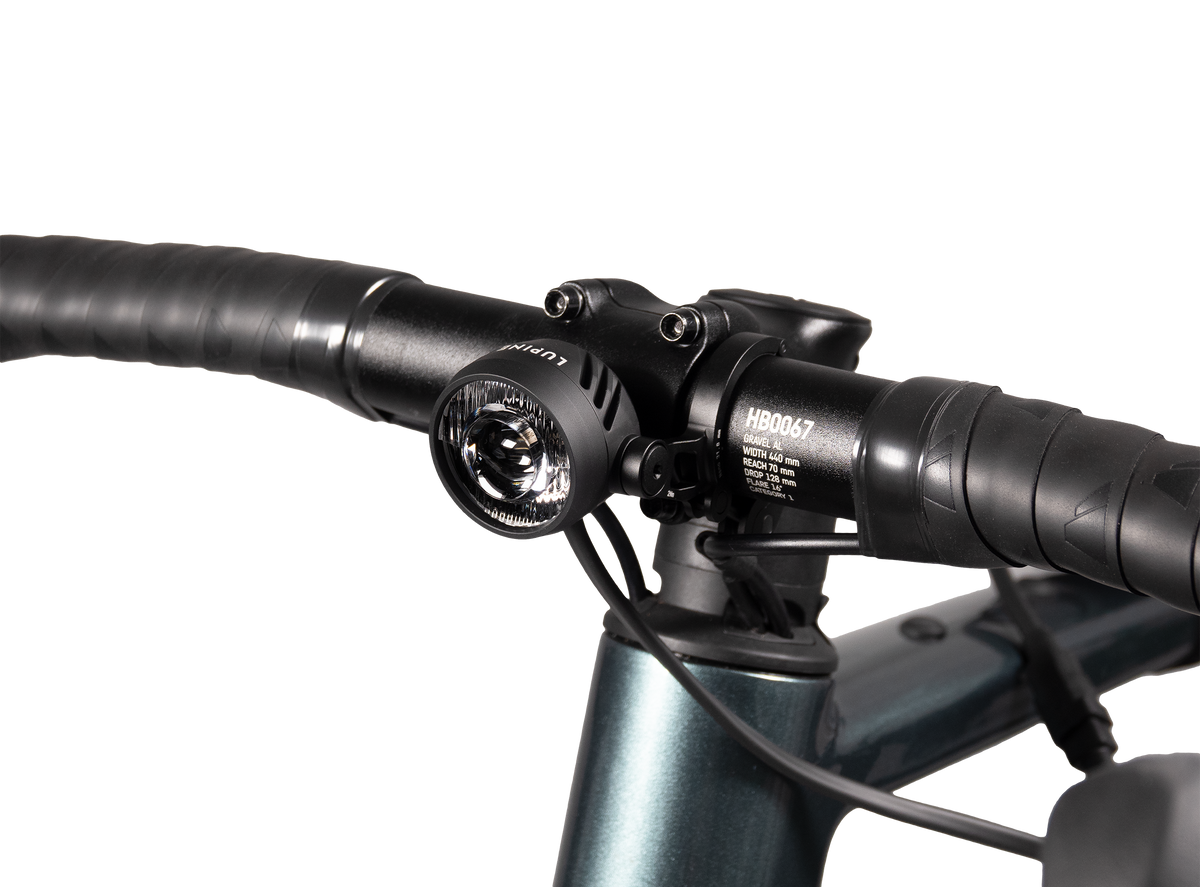

The elaborately designed biconic TIR lens directs the light of the two ams OSRAM automotive LEDs precisely onto the road and produces a homogeneous beam without dark shadows – with long range and a sharp cut-off line. Inside, Bluetooth 5.2 BLE does the work: the proven handlebar remote controls daytime running light, low beam and high beam without taking your hands off the bars. The optional Rotlicht Pro BT can be integrated wirelessly into the system and operated centrally from the same remote.
Fast assembly and flexible use

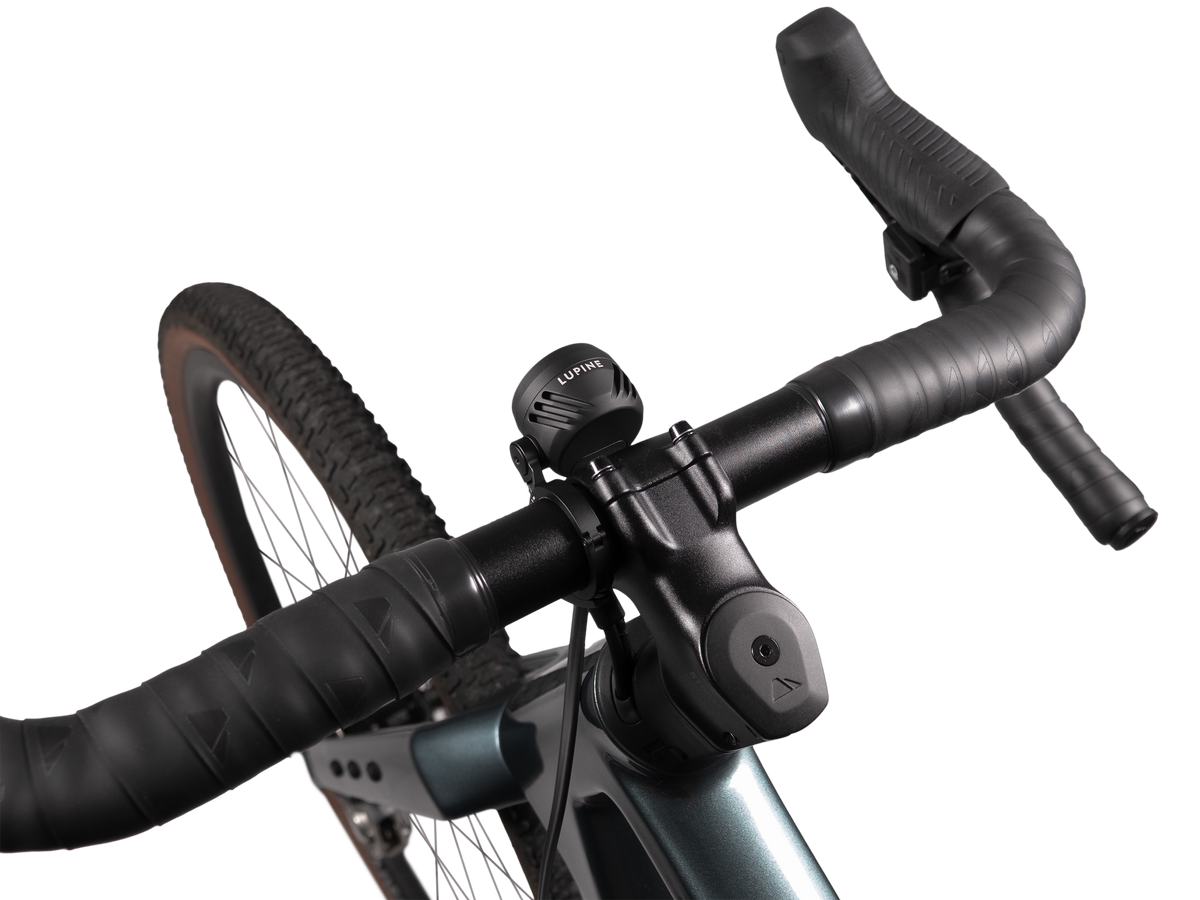

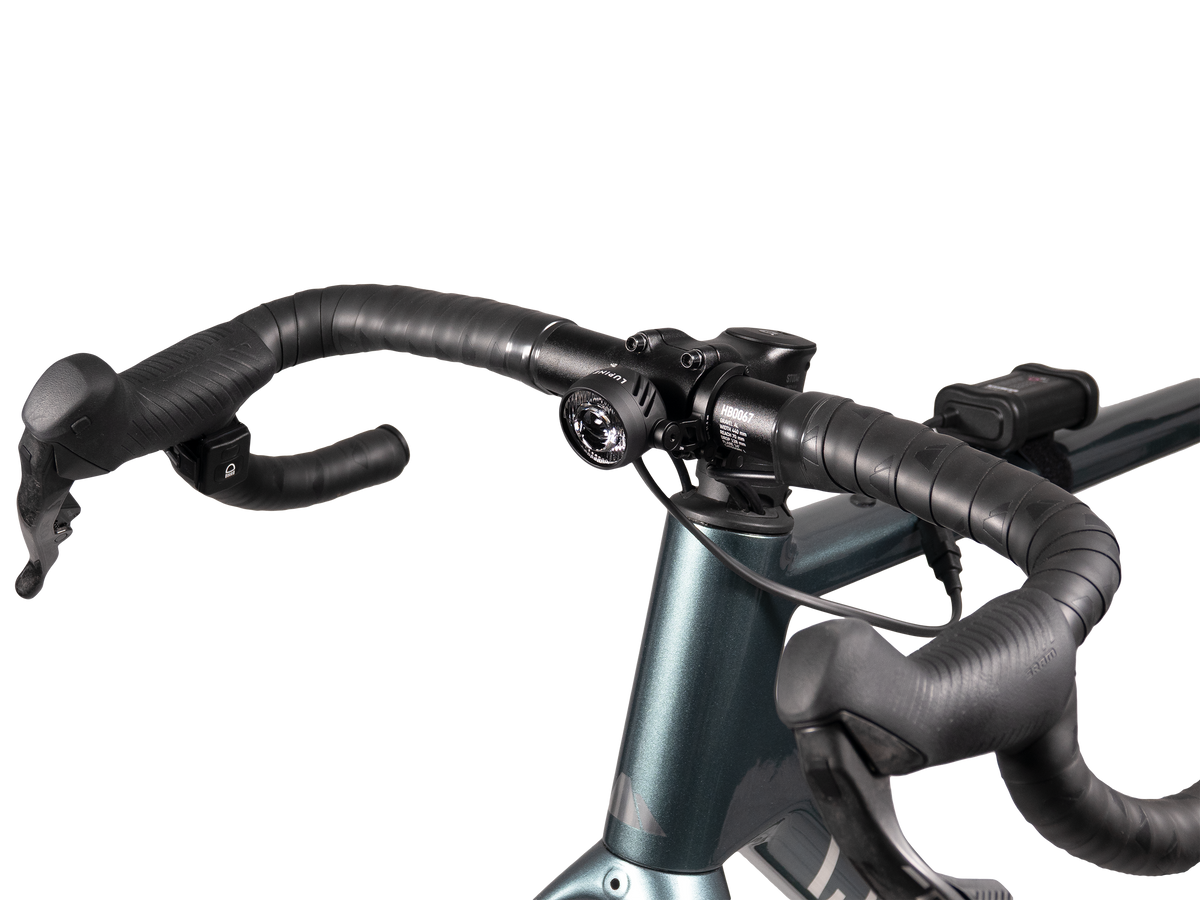

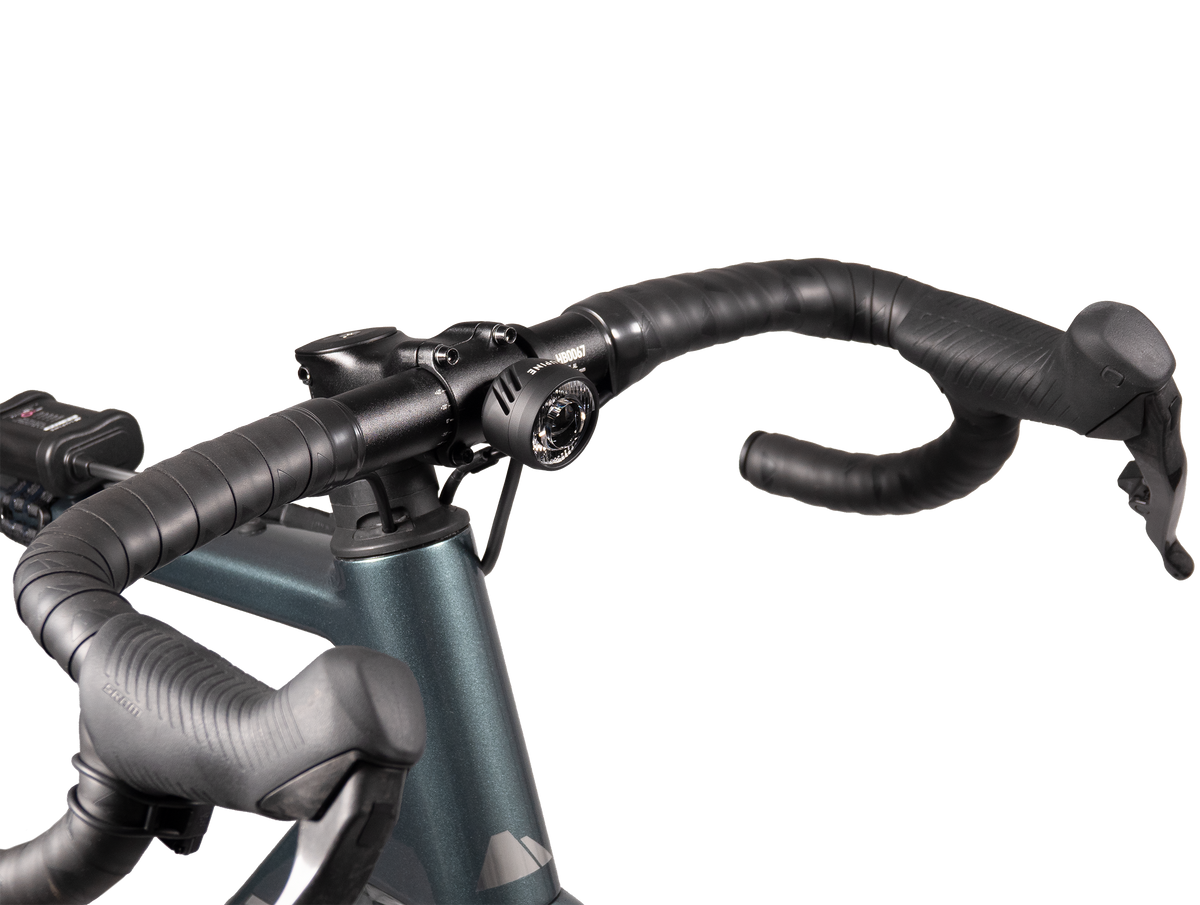

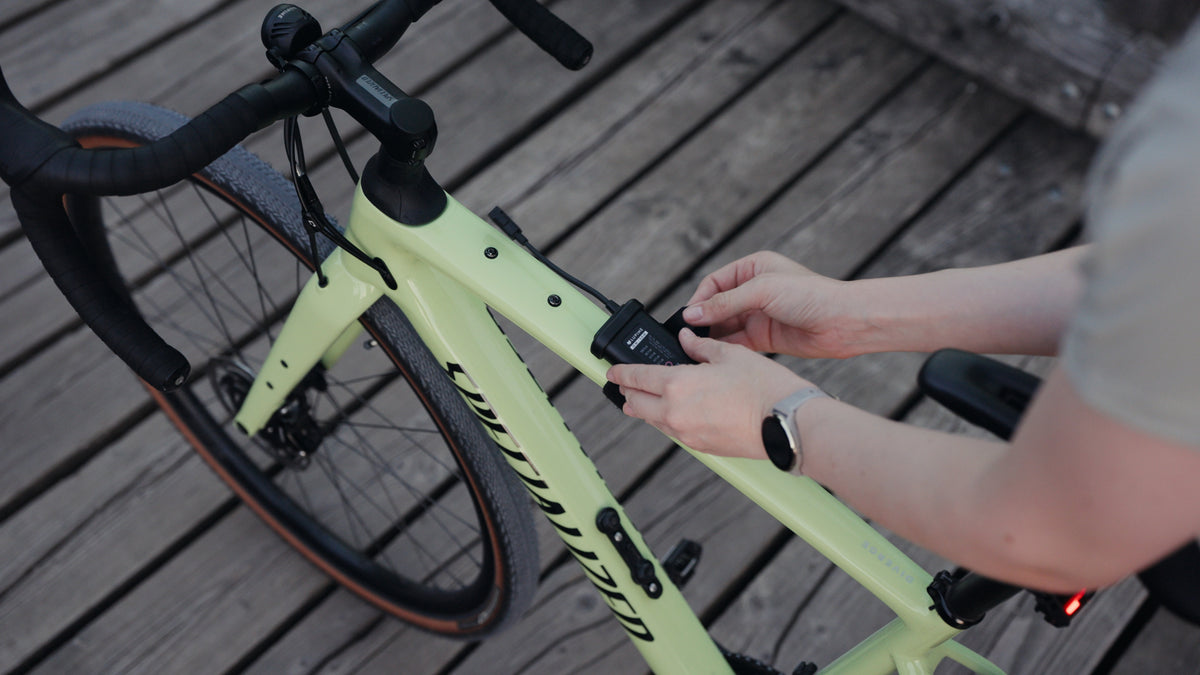

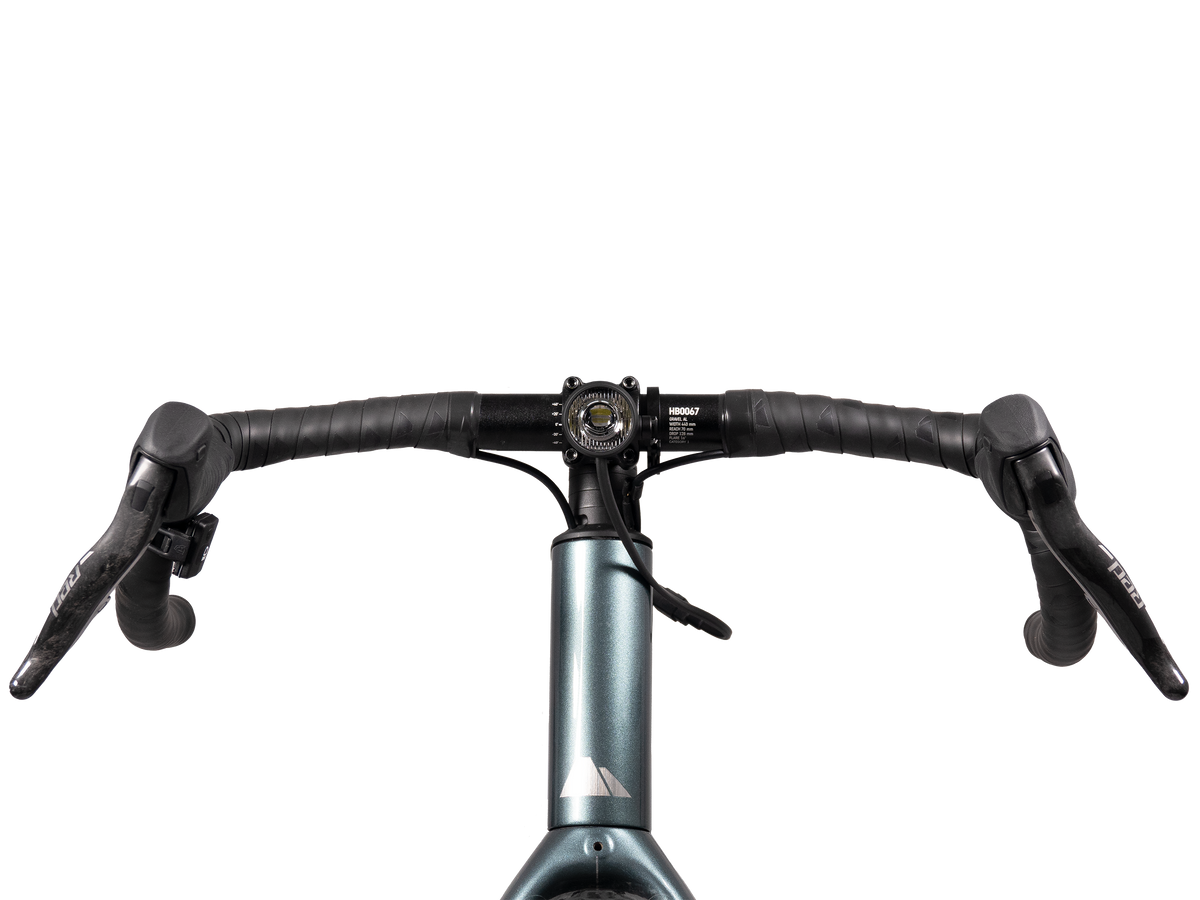

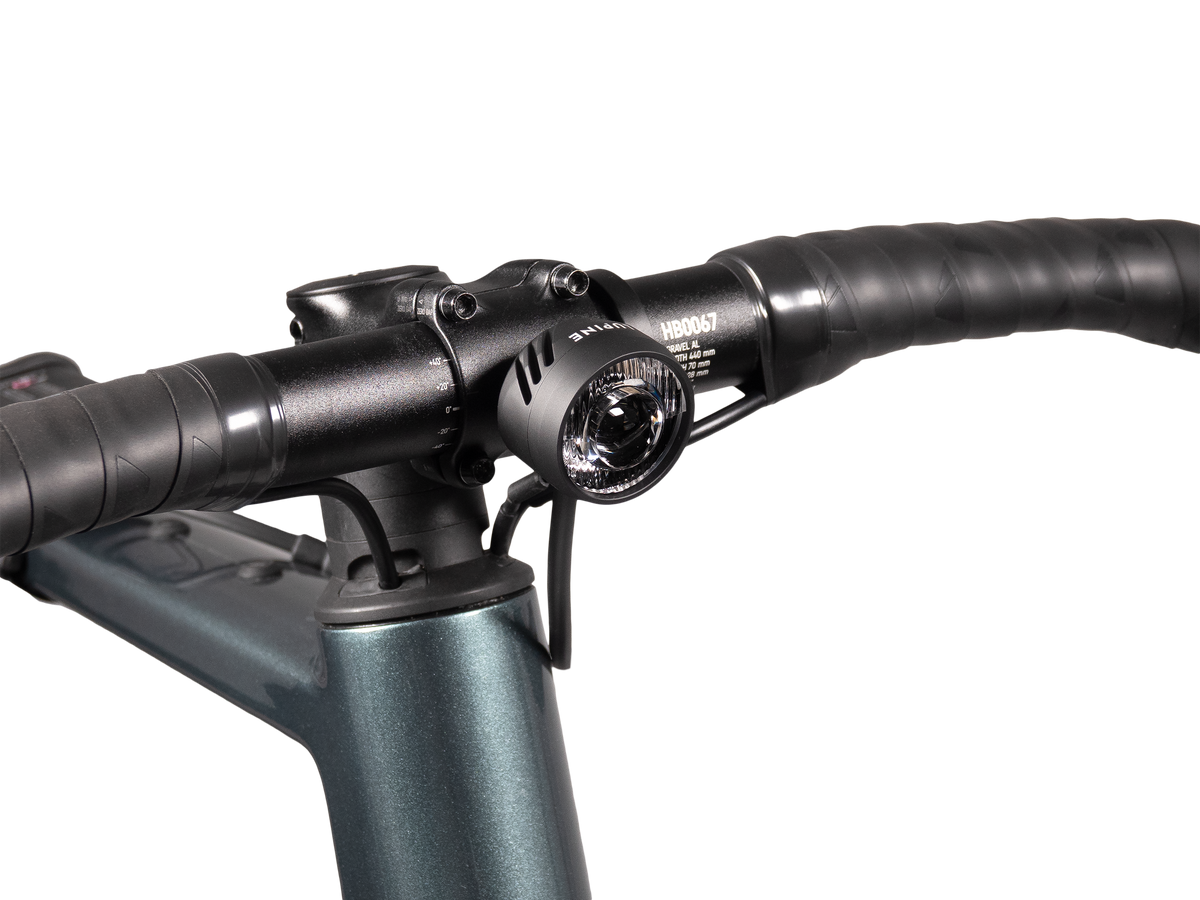

The reworked CNC-machined aluminum housing offers high stability and a sophisticated anodized finish. Its cooling fins now sit much better in the airflow and dissipate heat more efficiently while riding. The quick-release mount allows effortless mounting on the handlebar, while the external battery attaches flexibly to the frame with a hook-and-loop strap. Various battery sizes offer a choice between low weight and long runtime – with the 5.0 Ah SmartCore battery between 2:30 and 17:30 hours. With IPX6 water protection and IK09 impact resistance, the SL Nano AF is suitable for all weather conditions.
The light's applications range from city and urban bikes to trekking bikes, road bikes and gravel bikes. In city traffic the light impresses with safety and visibility, on long tours with endurance and reliability. Eco mode extends the burn time in a targeted way, while the three-stage battery warning and the emergency reserve mode keep the remaining capacity in view. Perfect for demanding riders who expect the highest light quality in a very compact package.
More than just packaging
Lightcase
With the Lightcases, we're taking a further step towards thoughtful, sustainable product solutions with a clear benefit for our customers: selected lamps are delivered already inside the Lightcase and are therefore safely stowed and optimally protected right out of the box – whether at home, on the road or in your backpack on your next outing.
We also offer the Lightcases optionally as accessories in three sizes that suit different setups and requirements.
Durable, high-quality and thoughtfully designed down to the last detail, the Lightcases replace unnecessary single-use packaging and create direct added value – protection, organisation and a transport solution in one.
Product Description
Low beam 800 lumens
High beam 1300 lumens
Biconic TIR lens
black anodized
IPX6 (water resistance)
Max: 17:30 h
Emergency reserve mode
3-stage battery warning
